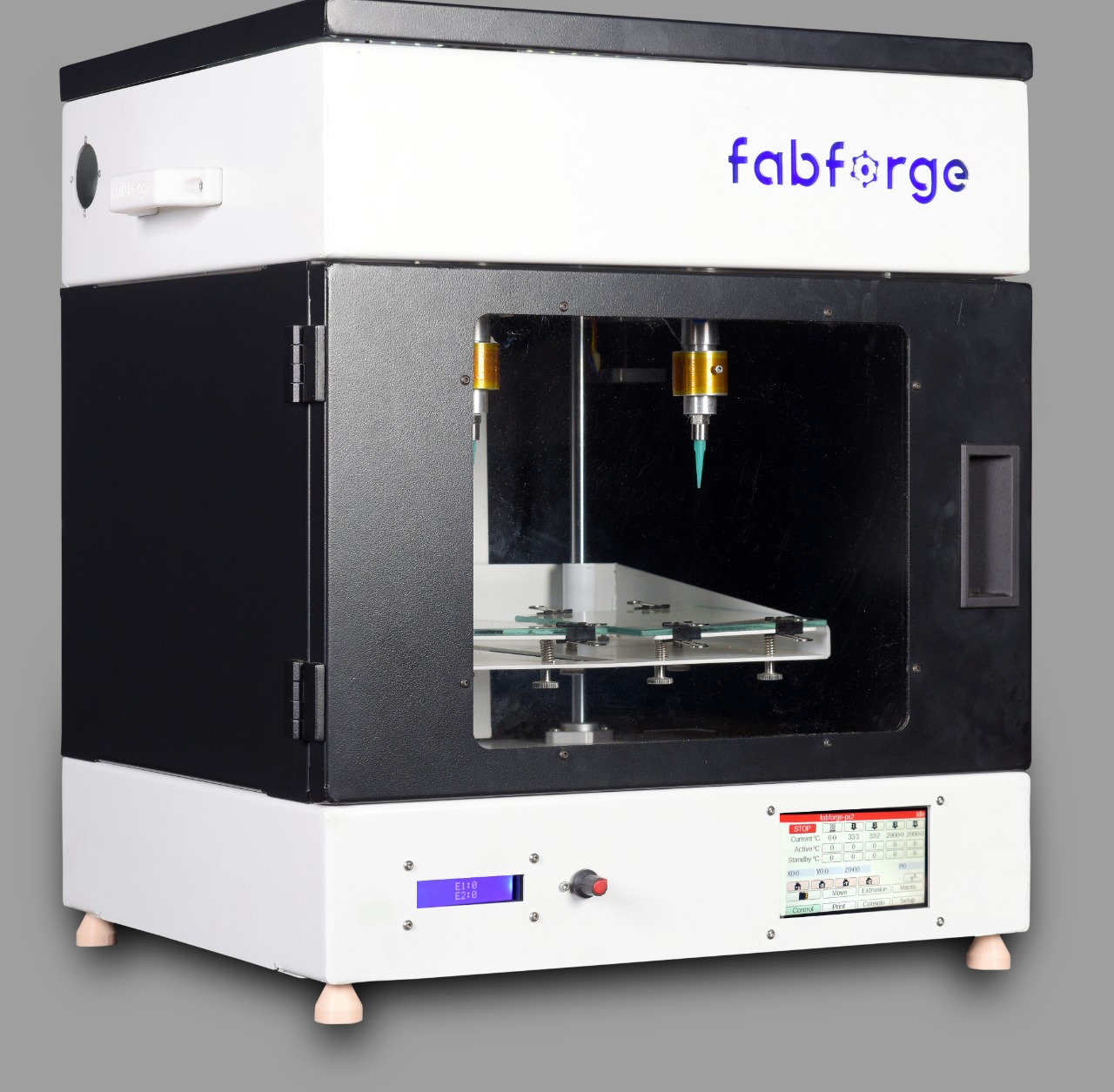

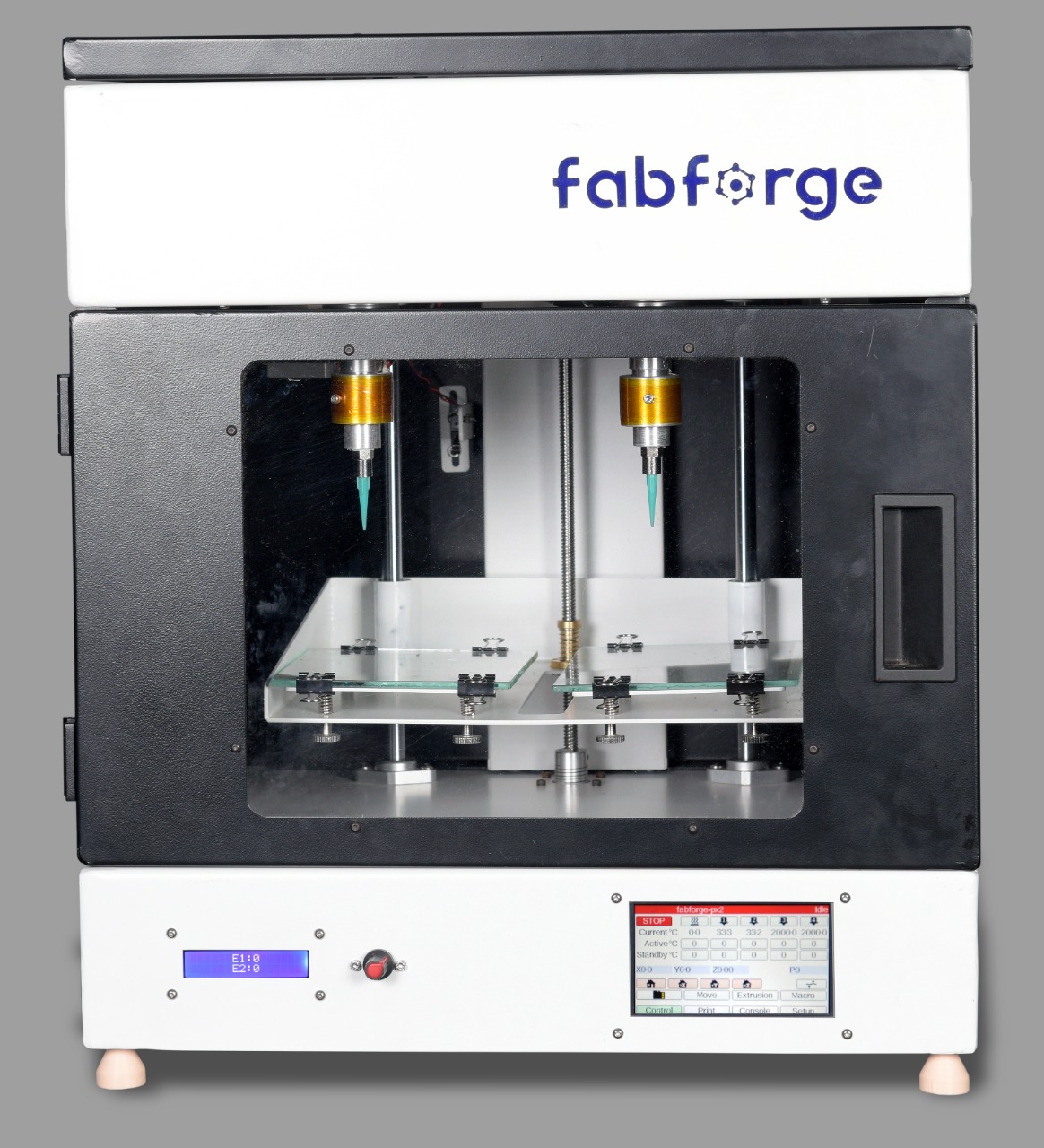

MODEL - Fabforge PX1
Technology - PDM (Paste Deposition Modeling)
Mechanism - Cartesian
Build Size - 100x100x100mm (XYZ) cumulative
Layer Resolution - 0.4mm – 1.6 mm
Extruders - Single
Bed Leveling - Assisted Bed Leveling
Print Speed - Up to 100mm/s ;30 mm/s (Recommended)
Nozzle size - 0.6 mm – 1.8mm
Position Accuracy - X/Y 0.01 mm ; Z 0.02mm
Max.Single head print volume - 100x100x100mm xyz
Print mode - SERIAL - multi-material processing
Individual Heaters - YES - Tank A and Head A for co-axial flow control upgrade with individual temperature control unit - Temperature 80?C
Supported Materials - Any kind of Paste, viscosity range up to 200000PS Gels, Starch, Protein, Chocolate, Pastries, Creams, etc.
Power Consumption - 480w or higher
Electrical - 110 V/230V AC, 50/60 Hz
Slicer Software - Cura 3.1 or Higher
Input Format - STL & OBJ
Output Format - G Codes
Connectivity - SD CARD & USB, Wifi& Web interface, Password protection
